Product Overview

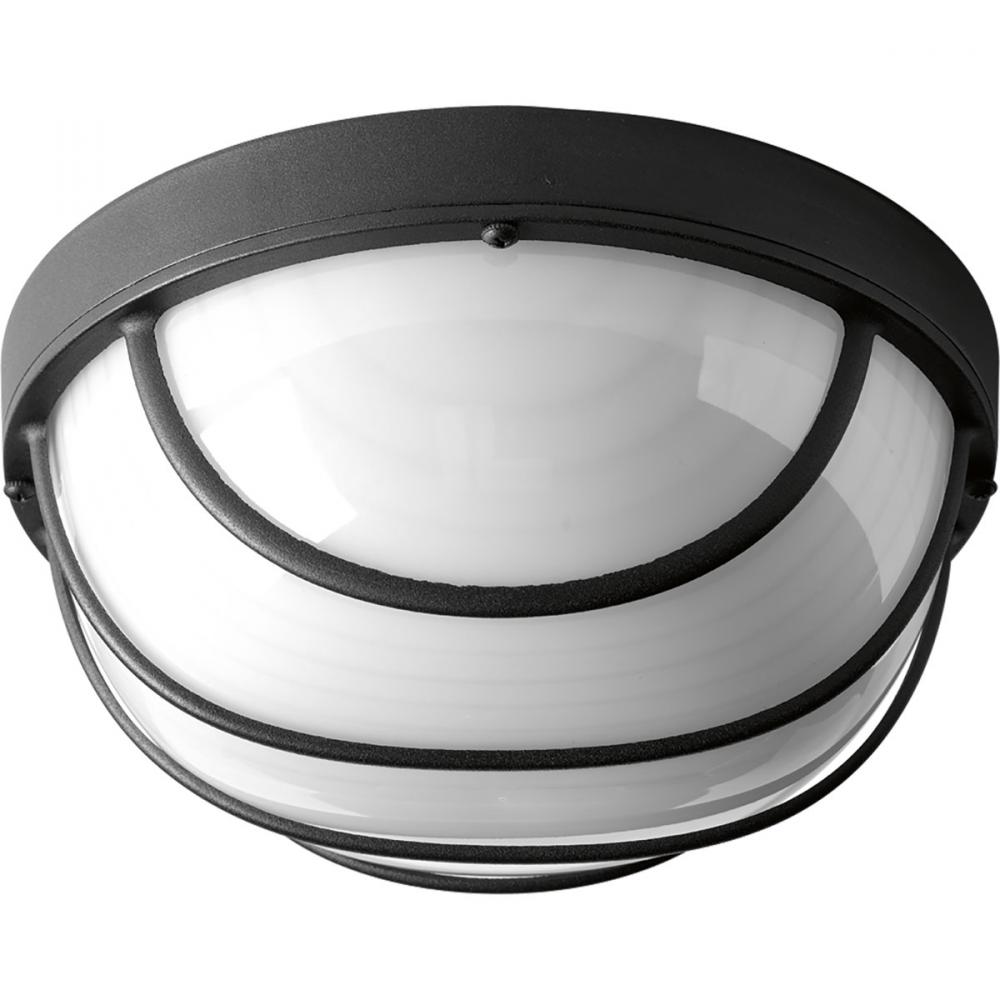

One-Light 9-1/2" LED Wall or Ceiling Bulkhead. General purpose LED luminaire comprised of a die-cast aluminum frame and polycarbonate diffuser with cage design. Fixtures are impact resistant and can be mounted on wall or ceiling. Replaceable LED module. Black finish.

Standard Information

Category:

Exterior

Flush Mounts

Subcategory:

Exterior Flush mounts

Outdoor Flush Mounts

Finish:

Black

Style:

Traditional

Transitional

Option:

Energy Efficient

Energy Star

Title 24

Outdoor

Wet Rated

LED

Title 20

Voltage:

100-120

Lumens:

450-800

Mount Type:

Flush Mount

Kelvin:

2501-3000

Location Rating:

Wet Rated

Refinement Options

Category:

Outdoor

Finish:

Textured Black

Style:

Coastal;Modern;Traditional

Option:

Energy Efficient

Energy Star

Title 20

Title 24

Wet Rated

Family:

Bulkheads LED

Glass:

White

Voltage:

120

Number of Bulbs:

1 Bulbs

Backplate Height:

1.00

Backplate Width:

9.13

Bulb Hours:

60000

Bulb Type:

Module

Depth:

4.69

Height To Center of Outlet:

4.75

Introduction Date:

09/01/2015

Kelvin:

3000

Keyword(s):

lantern;exterior light;outdoor light;led

Length:

9.13

Lumens / Light Output:

922

Material:

Aluminum

Ship Carton Height:

5.62

Ship Carton Length:

10.87

Ship Carton Width:

11.00

Ship Weight:

2.84

Special Features:

Robust and energy efficient.;Offers various mounting options.;Can be widely adapted for indoor and outdoor applications.;Meets California Title 24 high efficacy requirements for outdoor use only.;1,211 lumens 71.2 lumens/watt per module (source);3000K colo

Vendor Ship Method:

Non UPS Shippable False

Warranty:

5-year Limited

Weight:

1.83

Wire Included:

6 in

Americans with Disabilities Act:

No

Backplate Depth:

9.13

Bulb Base:

Module

Bulb CRI:

90 CRI

Bulb Included:

Yes

Can be Mounted Up or Down:

No

Canopy Shape:

Round

Certified Listed Location:

Wet Location Listed

Construction Material Main Part:

Construction

Country of Origin:

CN

Dark Sky:

No

Design Series:

No

Dimming Compatability:

Lutron_Nova T NTELV-300;Lutron_Vierti VTELV-600;Lutron_Maestro MAELV-600;Lutron_spacer/system SPSELV-600

Dimming Protocol:

ELV/Reverse Phase

Dimming Range:

10%

Energy Efficient:

Yes

Energy Star:

Yes

Finish Type:

Powder Coat Paint

Frequency Rating:

60 Hz

Glass Height:

3.625

Glass Length:

9.1875

Glass Shape:

Diffuser

Glass Width:

9.1875

Grounded Convenience Outlet included:

No

JA8:

No

Lamp Type Actual:

LED

Lamp Type Basic:

Solid State

Lamp Wattage:

17

Lens Shade Material:

Polycarbonate

Lumens per Watt:

54.60

Mount location:

Wall Or Ceiling

MTO:

No

Operating Temperature Celcius Max:

30 °C

Prop 65:

View

Prop 65 Description:

View

Room Type:

Outdoor

Safety Rating:

cCSAus

Starting Temperature Minimum:

-30 °C

Sub Brand:

Progress LED

Title 20:

Yes

Title 24:

Yes

Width Diameter:

9.5 in dia.
