Product Overview

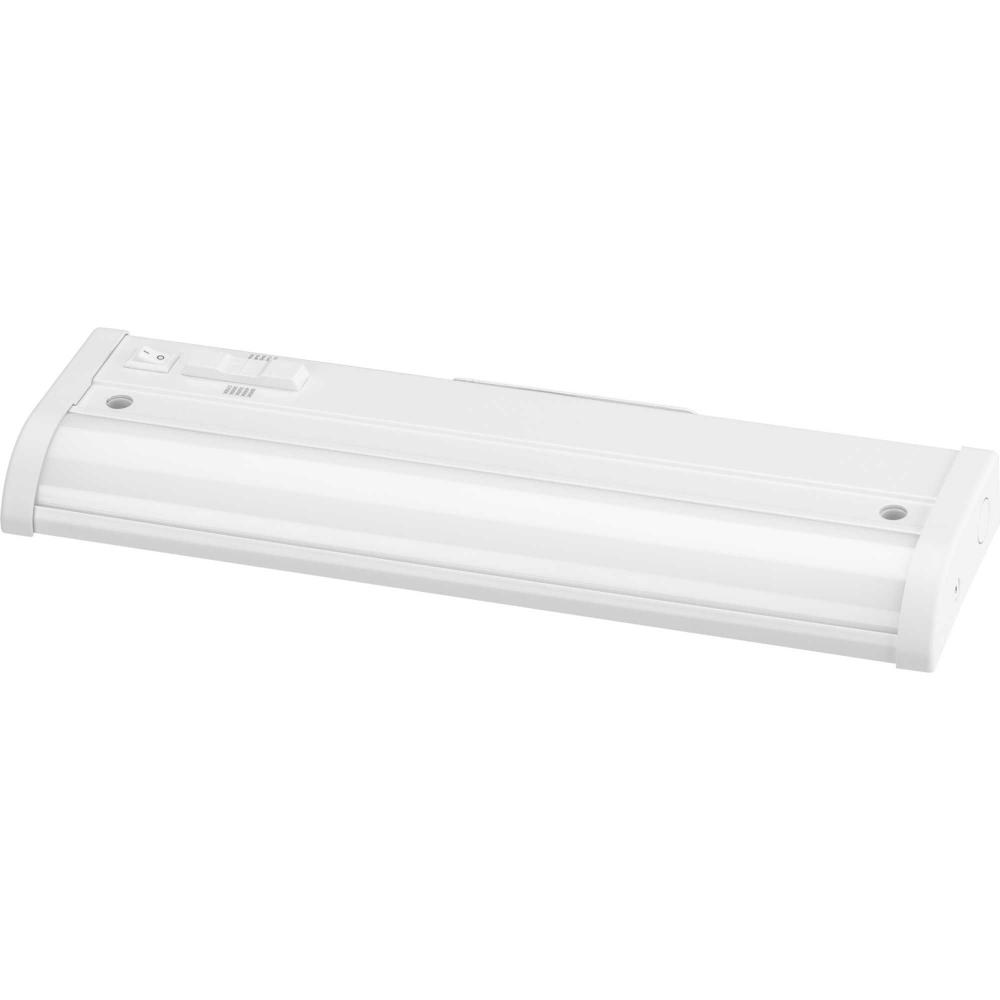

Combine elegant design with energy-efficient LED light in the Hide-A-Lite Collection 1-Light 12-Inch Satin White Modern LED Linear Undercabinet Light. The fixture's frame is coated in a crisp satin white finish. An access plate and quick connect wire connectors make installation easy. The fixture is directly wired. Two armored cable fittings are included. The 5-CCT selectable LED light engine offers flexibility in application, allowing the choice of 5 different color temperatures allowing for the best lighting color to fulfill the design intent. An on-off switch on the front allows for easy task light illumination.

Standard Information

Category:

Undercabinet

Subcategory:

LED Undercabinet Lights

Finish:

White

Style:

Contemporary

Traditional

Transitional

Option:

Energy Efficient

Energy Star

Title 24

Damp Rated

LED

Voltage:

100-120

Lumens:

450-800

Kelvin:

2501-3000

Location Rating:

Damp Rated

Wattage:

4.5w

Refinement Options

Category:

Undercabinet

Finish:

Satin White

Style:

Commodity;Contemporary;Modern;Traditional;Transitional;Utilitarian

Option:

Damp Rated

Energy Efficient

Energy Star

Title 24

Family:

Hide-a-lite

Voltage:

120 VAC

Number of Bulbs:

1 Bulbs

Backplate Height:

0.12

Backplate Width:

11.27

Bulb Hours:

50000

Bulb Type:

Integrated LED

Introduction Date:

01/01/2021

Kelvin:

2700;3000;3500;4000;5000

Keyword(s):

light lighting light fixture light fixtures modern light fixture undercabinet light undercabinet lighting recessed lighting functional lighting

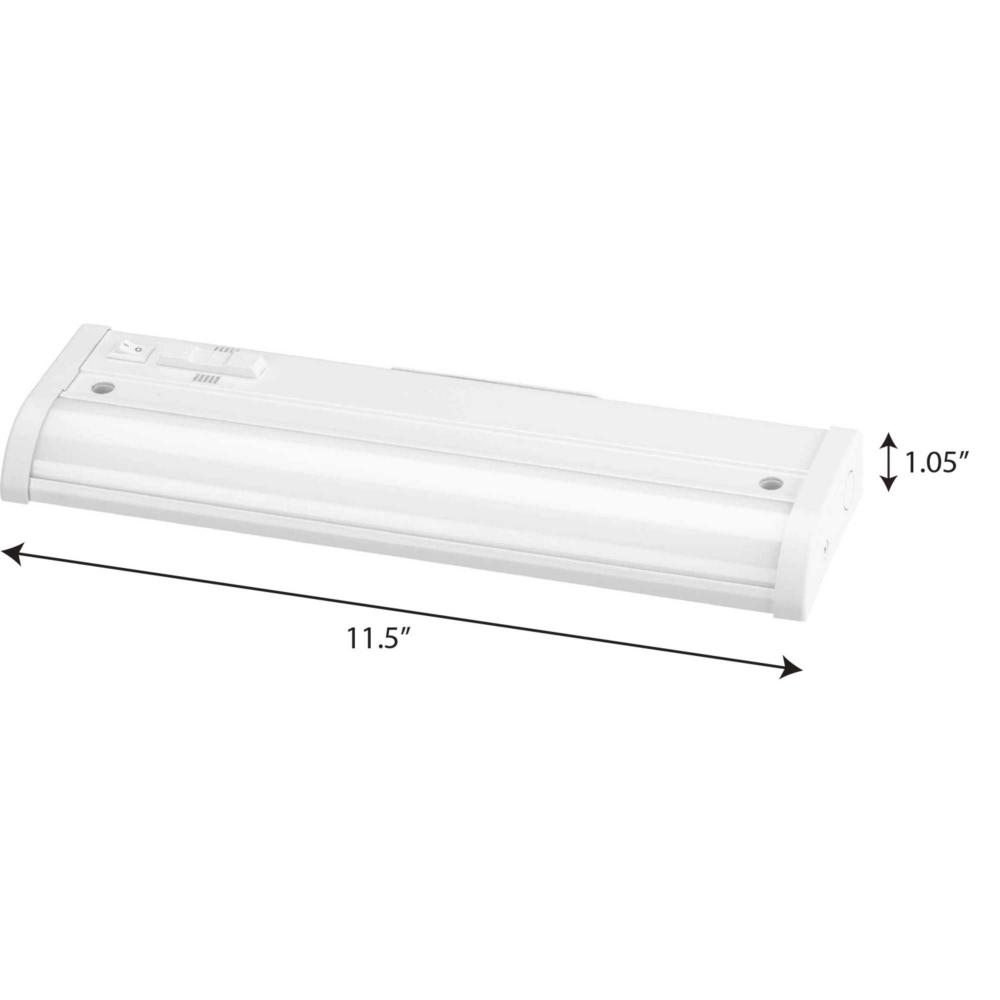

Length:

11.50

Lumens / Light Output:

299

Material:

Aluminum

Ship Carton Height:

3.58

Ship Carton Length:

13.00

Ship Carton Width:

1.37

Ship Weight:

1.12

Special Features:

Application: Combine elegant design with energy-efficient LED light in the Hide-A-Lite Collection 1-Light 12-Inch Satin White Modern LED Linear Undercabinet Light ideal for any bar, closet, garage, kitchen, laundry room, pantry, self-storage, storeroom, ut

Vendor Ship Method:

Non UPS Shippable False

Warranty:

5-year Limited

Weight:

0.72

Wire Included:

6 in

Americans with Disabilities Act:

Yes

Backplate Depth:

3.02

Bulb Base:

Integrated

Bulb CRI:

90 CRI

Bulb Included:

Yes

Can be Mounted Up or Down:

No

Certified Listed Location:

Damp Location Listed

Construction Material Main Part:

Housing

Convertible Fixture Includes Both Mounts:

FALSE

Country of Origin:

CN

Dark Sky:

No

Design Series:

No

Dimming Compatability:

Eaton AAL06;IDevices IDEV009;Leviton_Trimatron 6681;Leviton IPI06-1LZ;Leviton 6672;Leviton 6674;Lutron NTEVL-300;Lutron DVELV-300P;Lutron DVCL-253P;Lutron Caseta Wireless;Lutron AYCL-153P;Lutron SCL-153P;Lutron TGCL-153-PH-WH;Lutron MACL-153M

Dimming Protocol:

Triac/Forward Phase;ELV/Reverse Phase

Dimming Range:

Dims to 10% Brightness

Energy Efficient:

Yes

Energy Star:

Yes

Finish Type:

Painted

Frequency Rating:

60 Hz

Grounded Convenience Outlet included:

No

JA8:

2019

Lamp Type Basic:

Solid State

Lamp Wattage:

4.5

Lumens per Watt:

66.00

Mount Location:

Undercabinet

Post Top Fits Standard:

No

Prop 65:

View

Prop 65 Description:

View

Quick Install Canopy:

No

Quick Link Connector:

No

Room Type:

Bar;Closets;Garage;Kitchen;Laundry;Pantry;Self-storage;Store Rooms;Utility;Work Areas

Safety Rating:

cCSAus

Starting Temperature Minimum:

-25 °C

Sub Brand:

Progress LED

Title 20:

No

Title 24:

Yes

Weight of Fixture Exceeds NEC Limits:

No
