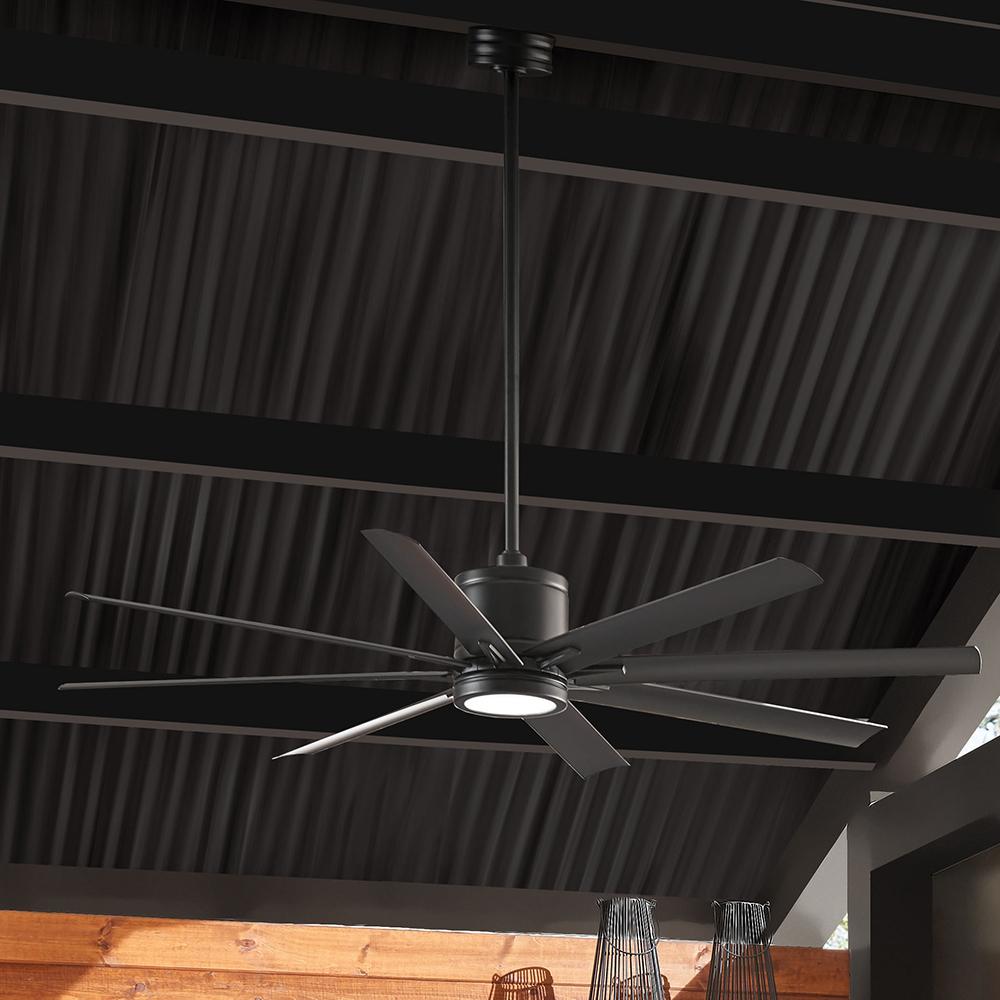

Create a major aesthetic statement with Vantage's modern industrial design featuring gently curved blades. Available in a variety of finish options, Vantage can be applied to a range of spaces. Equipped with integrated LED and DC motor technology to deliver excellent energy efficiency. Vantage is so versatile; it can be used for both indoor and outdoor spaces.
Standard Information
Category:
Exterior
Fans
Subcategory:
Exterior Fans
Outdoor Fans
Finish:
Gray
Miscellaneous
Style:
Transitional
Option:
Title 24
Wet Rated
LED
Prop 65
Voltage:
100-120
Lumens:
1101-1600
Number of Blades:
8+ Blades
Kelvin:
2501-3000
Location Rating:
Wet Rated
Refinement Options
Category:
Fan
Finish:
Graphite
Style:
Transitional
Family:
Vantage
Glass:
Etched Opal
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Air Flow Efficiency:
9087
Amperage:
0.41
Blade Finish:
Driftwood
Blade Pitch:
12.5

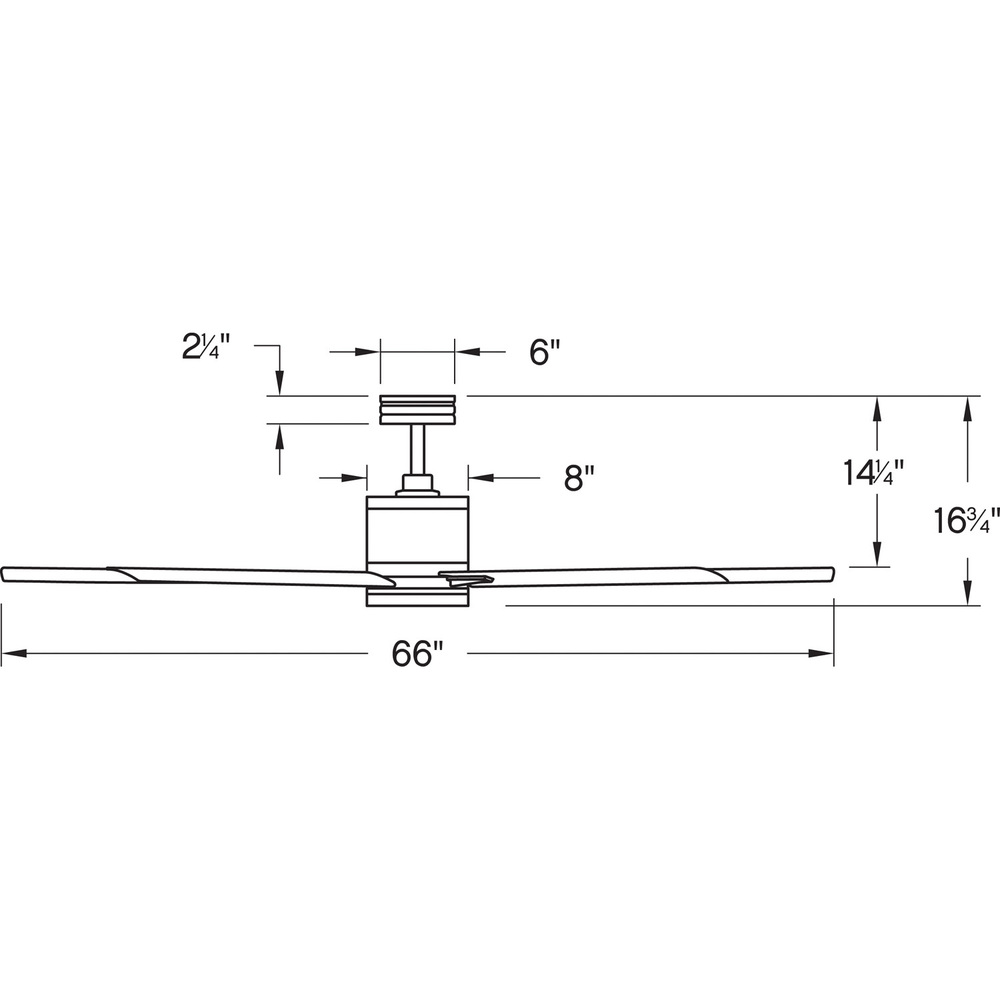

Blade Span:
66
Blades Included:
Yes
Bulb Dimmable:
Yes - CL Type Dimmer (SSL7A)
Bulb Hours:
50000
Bulb Type:
LED
Canopy:
6 Dia. x 2.25 D
Introduction Date:
01/01/2020
Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
1320
Material:
Steel
Motor Size:
DC-165
Motor Type:
DC
Ship Carton Height:
12
Ship Carton Length:
31.5
Ship Carton Width:
10.5
Ship Weight:
26.5
Vendor Ship Method:
Parcel
Weight:
24.5

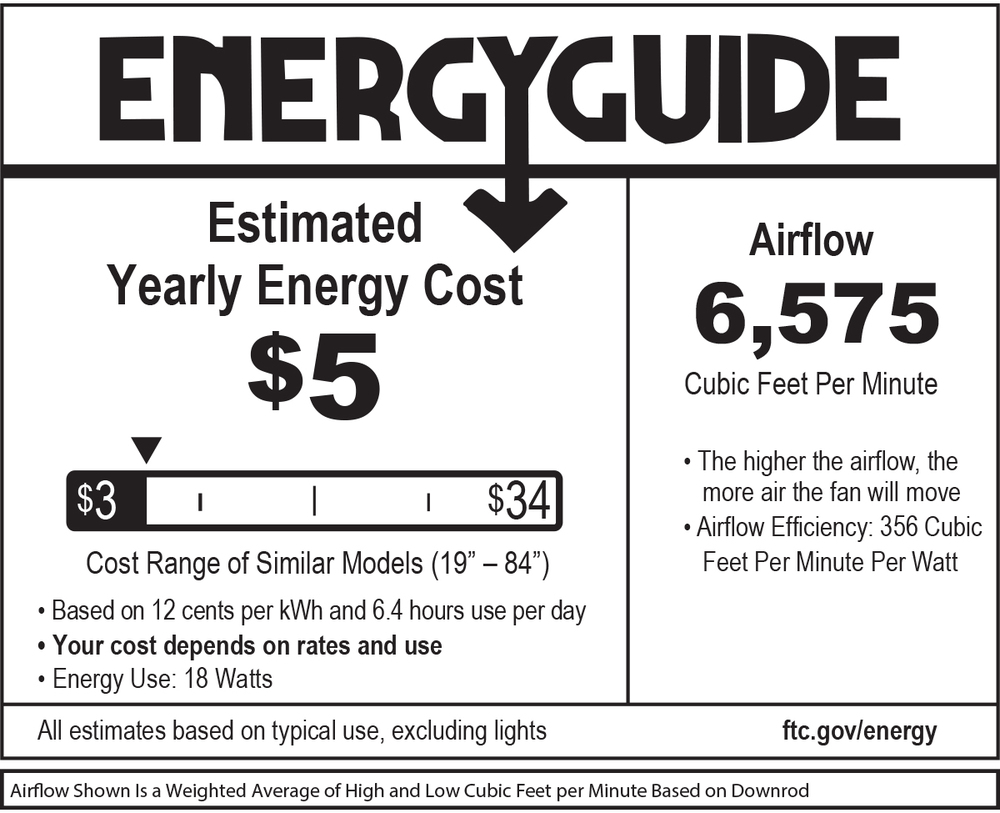

Airflow Avg:
6575
AMPS Avg:
0.24
Avg Energy Use:
18
Blade Material:
Composite
Blade Options Available:
No
Blade To Ceiling Height:
14.75
Blades Reversible:
No
Bulb CRI:
90
Bulb Included:
Yes

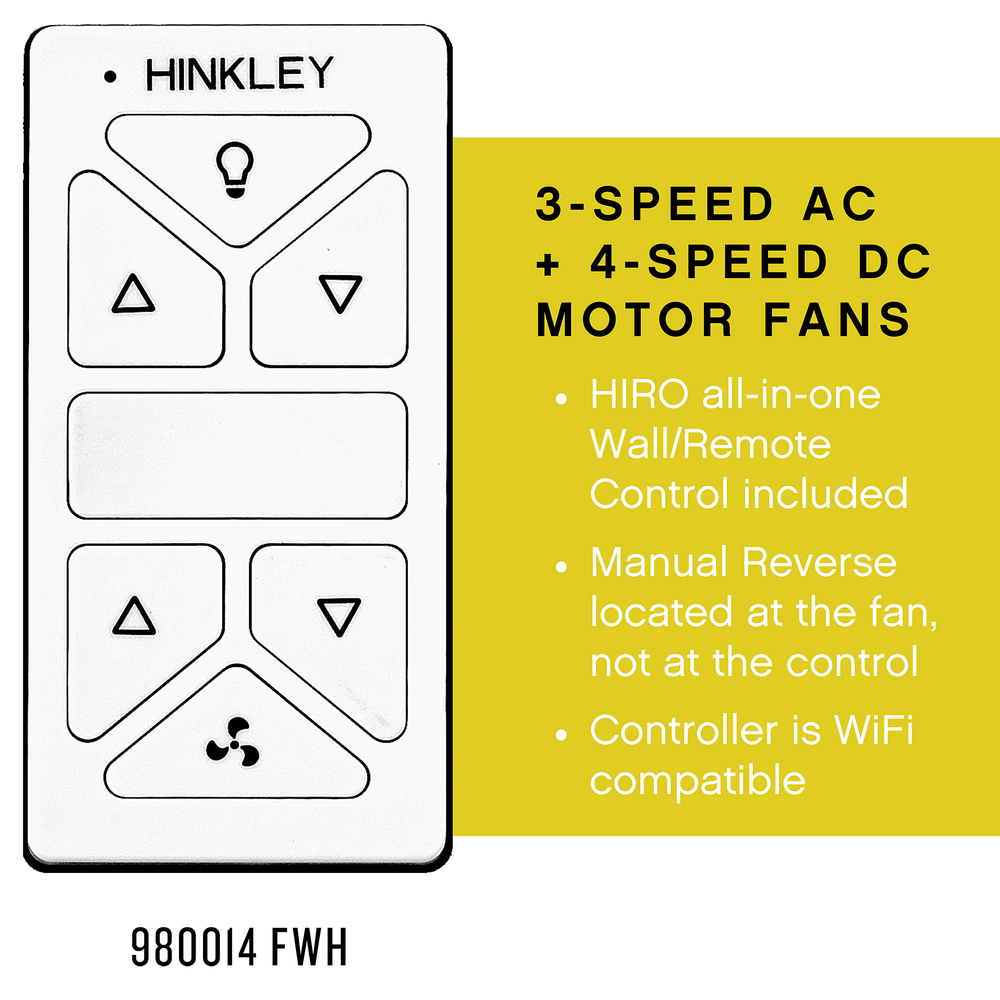

Control Type:
HIRO Control - 6 Speed Reversing
Country of Origin:
China
Dual Mount:
No
Efficiency Avg:
356
Efficiency High:
312
Energy Cost Avg:
5
Energy Cost High:
8
Energy Use High:
29.2
Fan Control:
Yes
Flush Mount Fan:
No
Incandescent Equivalency:
100 W
Light Kit Adaptable:
No
Light Source:
Integrated LED
Location Rating:
Wet Rated
Max Wattage:
16 W
Motor Fan Speed:
6
Number of Blades:
8
Operating Frequency:
60
Prop 65 Description:
View
Receiver Included:
Yes
Reversing Control:
Yes
RPMS Avg:
77
RPMS High:
108
Safety Rating:
ETL Approved, C-US Approved
Single Power Switch:
Yes
Slope:
20
Sloped Ceiling Adaptable:
Yes
Stand By Power:
0.2
Title 24:
Yes
WIFI Control Included:
Yes
WIFI Control Optional:
No
Blades, controls, switches, capacitors and hardware carry a 1-year warranty
Fan Control included, HIRO Control - 6 Speed Reversing
Fans should be installed at a minimum of 7 feet from the floor
For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
LED components carry a 5-year limited warranty
Merging the best of traditional and modern elements with a sophisticated and streamlined look
Motor carries a lifetime warranty
Suitable for use in wet (outdoor direct rain) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards
This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.

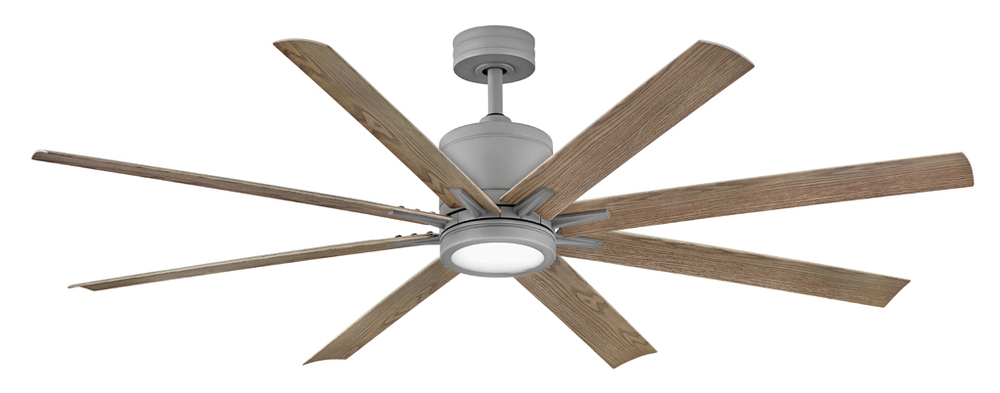

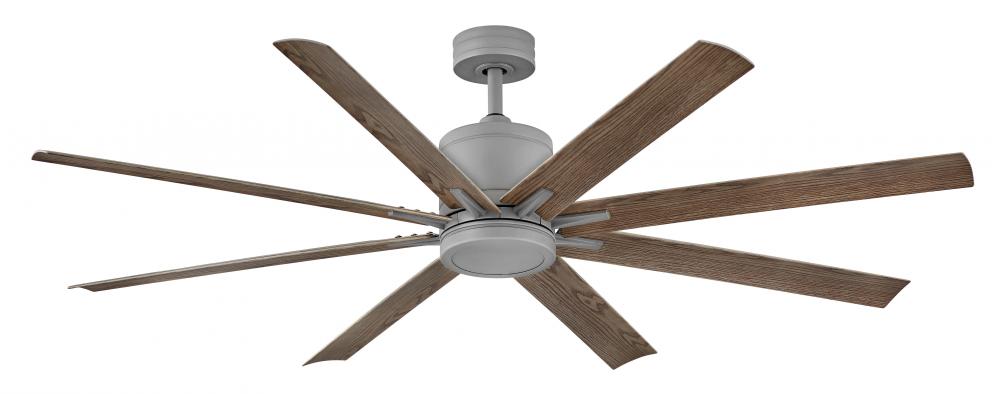

![Vantage 66" LED Smart Fan](/vendors/87/large/902466fgt-lwd_vantage.jpg "Vantage 66" LED Smart Fan")
