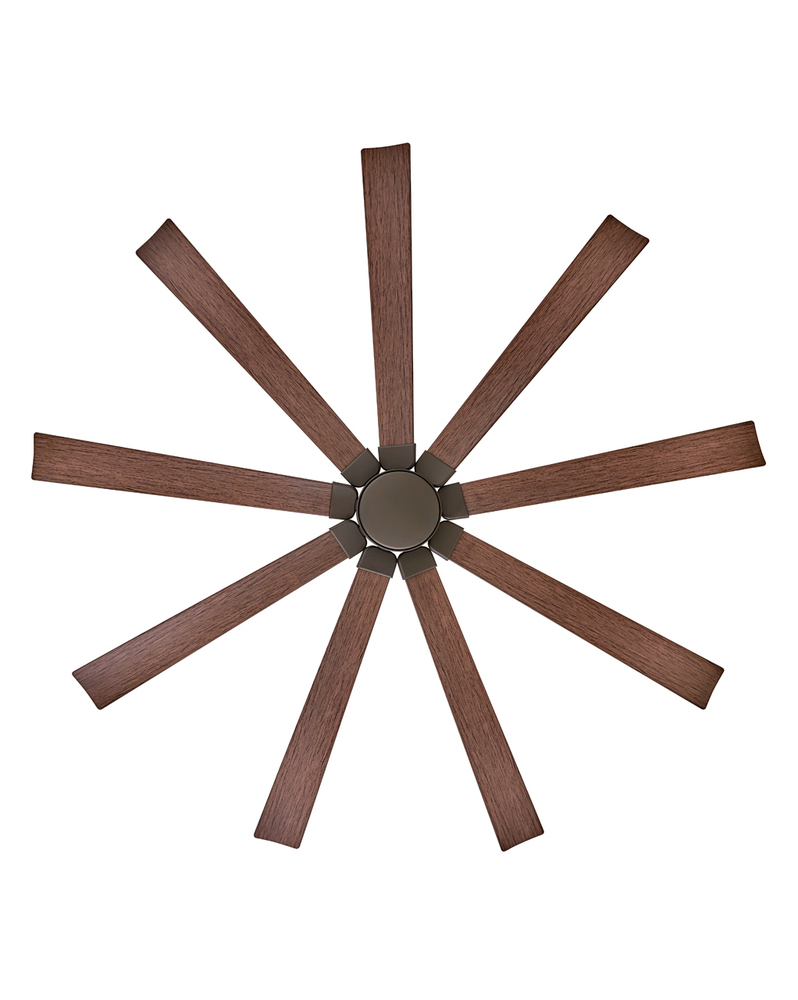

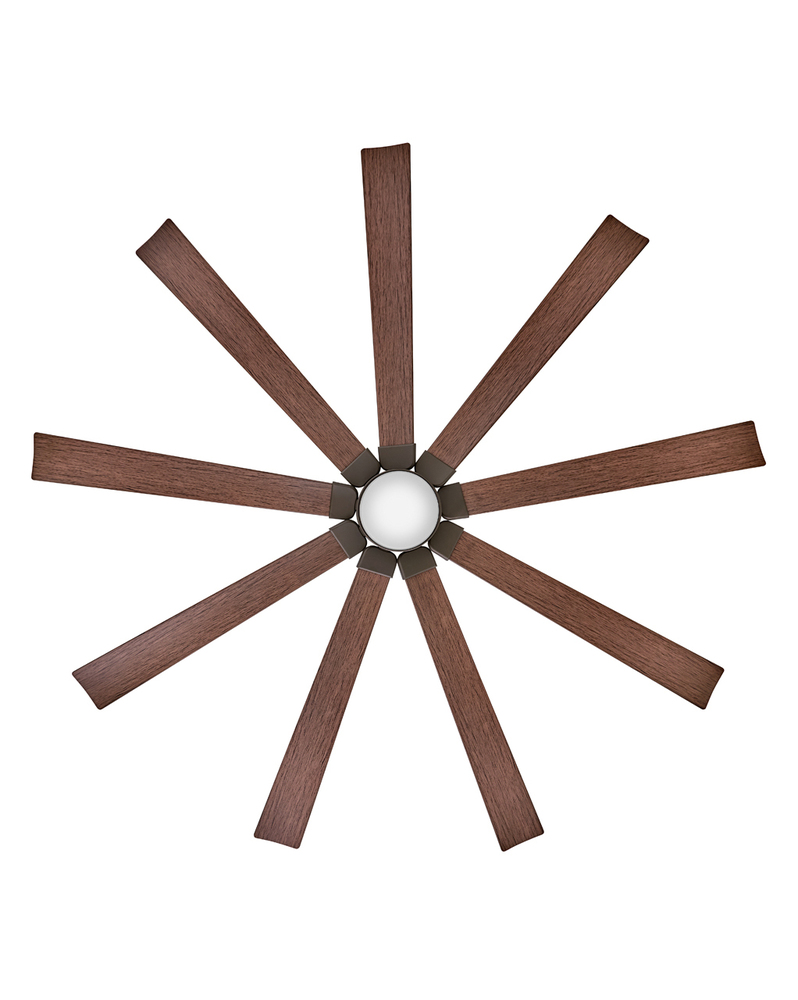

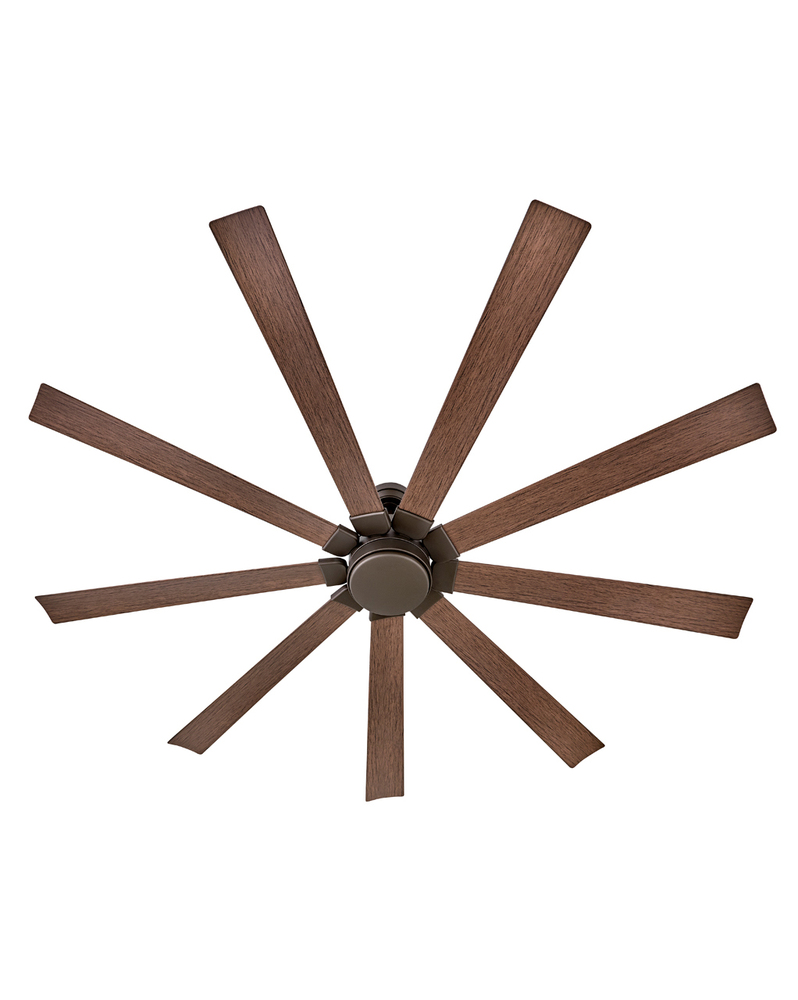

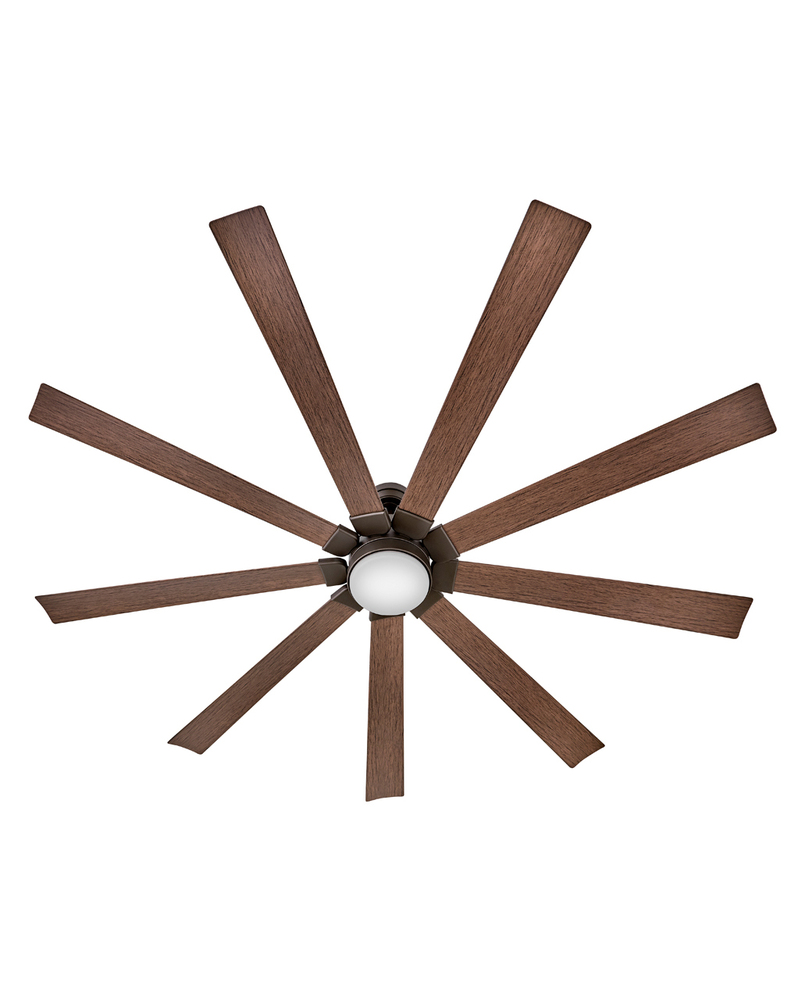

Turbine is a robust nine-blade fan, offering a clean look and excellent breeze. Its sleek blades accentuate all spaces, available in a variety of finishes. Complemented by a beautiful etched opal shade, Turbine boasts modern functionality. Versatile in style and form, Turbine appeals to both interior and outdoor living spaces.
Standard Information
Category:
Exterior
Fans
Subcategory:
Exterior Fans
Outdoor Fans
Finish:
Bronze
Style:
Transitional
Modern
Industrial
Option:
Title 24
Wet Rated
LED
Prop 65
Voltage:
100-120
Lumens:
1601-2600
Number of Blades:
8+ Blades
Kelvin:
2501-3000
Location Rating:
Wet Rated
Refinement Options
Category:
Fan
Finish:
Metallic Matte Bronze
Style:
Modern
Family:
Turbine
Glass:
Etched Opal
Voltage:
120 V
Number of Bulbs:
2 Bulbs
Air Flow Efficiency:
12944
Amperage:
0.47
Blade Finish:
Walnut
Blade Pitch:
13

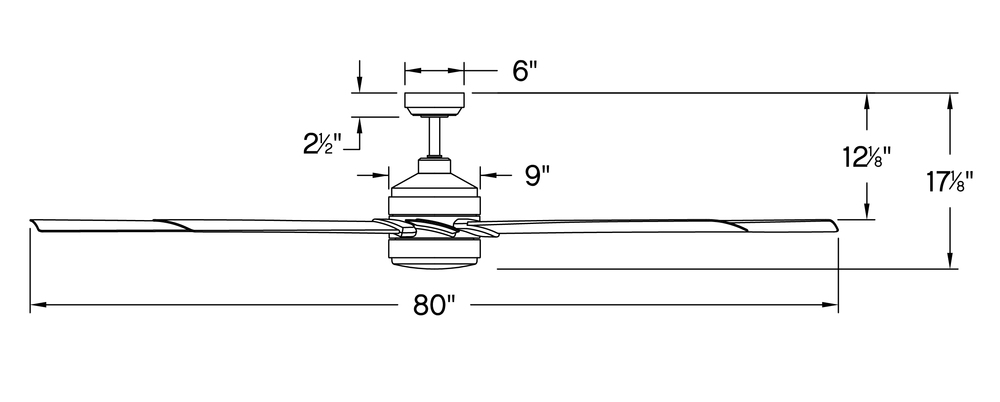

Blade Span:
80
Blades Included:
Yes
Bulb Dimmable:
Yes - CL Type Dimmer (SSL7A)
Bulb Hours:
50000
Bulb Type:
LED
Canopy:
6 Dia. x 2.5 D
Introduction Date:
01/01/2022
Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
2000
Material:
Steel
Motor Size:
DC-168 x 30NS
Motor Type:
DC
Ship Carton Height:
13
Ship Carton Length:
13
Ship Carton Width:
38
Ship Weight:
42
Vendor Ship Method:
Parcel
Weight:
38
Airflow Avg:
8634
AMPS Avg:
0.27
Avg Energy Use:
26
Blade Material:
Composite
Blade Options Available:
No
Blade To Ceiling Height:
13
Blades Reversible:
No
Bulb CRI:
90
Bulb Included:
Yes
Control Type:

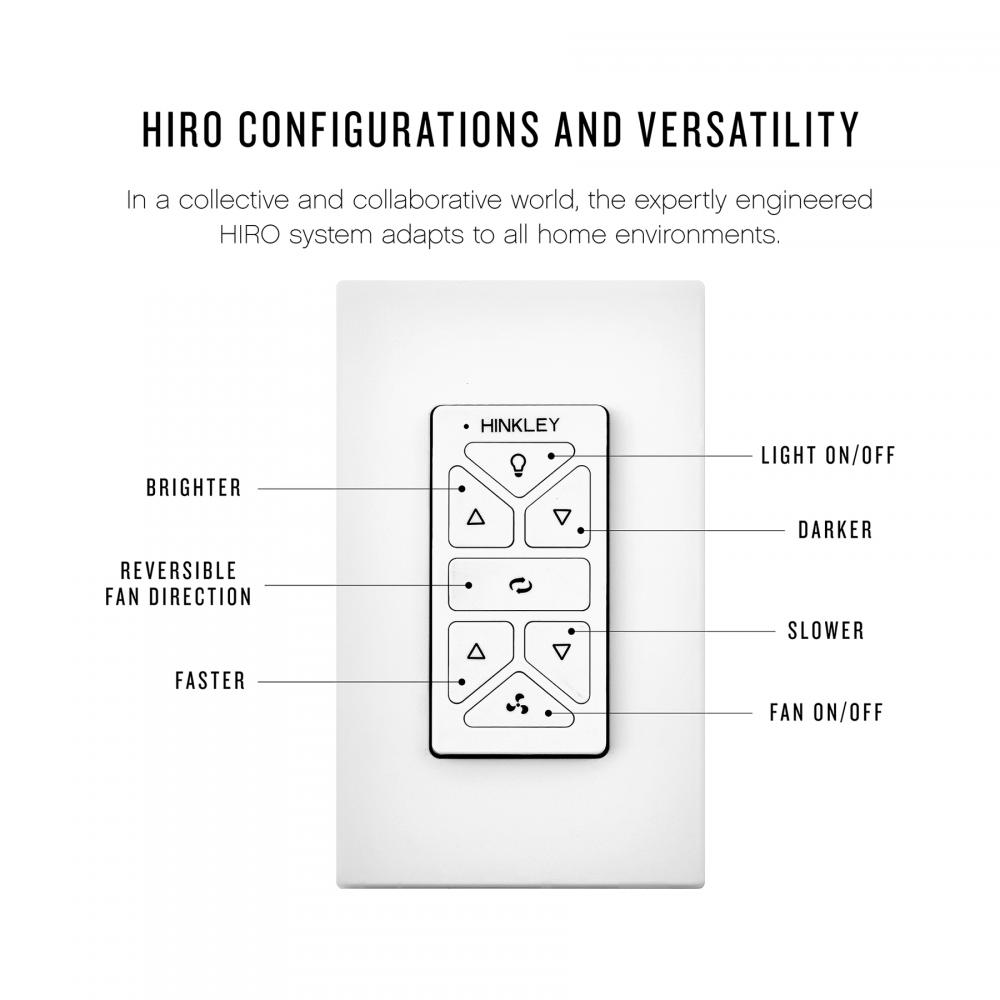

HIRO Control - 6 Speed Reversing
Country of Origin:
China
Dual Mount:
No
Efficiency Avg:
337
Efficiency High:
360
Energy Cost Avg:
7
Energy Cost High:
10
Energy Use High:
36
Fan Control:
Yes
Flush Mount Fan:
No
Incandescent Equivalency:
75 W
Light Kit Adaptable:
No
Light Source:
Integrated LED
Location Rating:
Wet Rated
Max Wattage:
24 W
Motor Fan Speed:
6
Number of Blades:
9
Operating Frequency:
60
Prop 65 Description:
View
Receiver Included:
Yes
Reversing Control:
Yes
RPMS Avg:
63
RPMS High:
97
Safety Rating:
UL Approved, C-US Approved
Single Power Switch:
No
Slope:
20
Sloped Ceiling Adaptable:
Yes
Stand By Power:
0.2
Style-2:
Industrial
Title 24:
Yes
WIFI Control Included:
Yes
WIFI Control Optional:
No
Blades, controls, switches, capacitors and hardware carry a 1-year warranty
Bold silhouette with dramatic details creates a modern statement

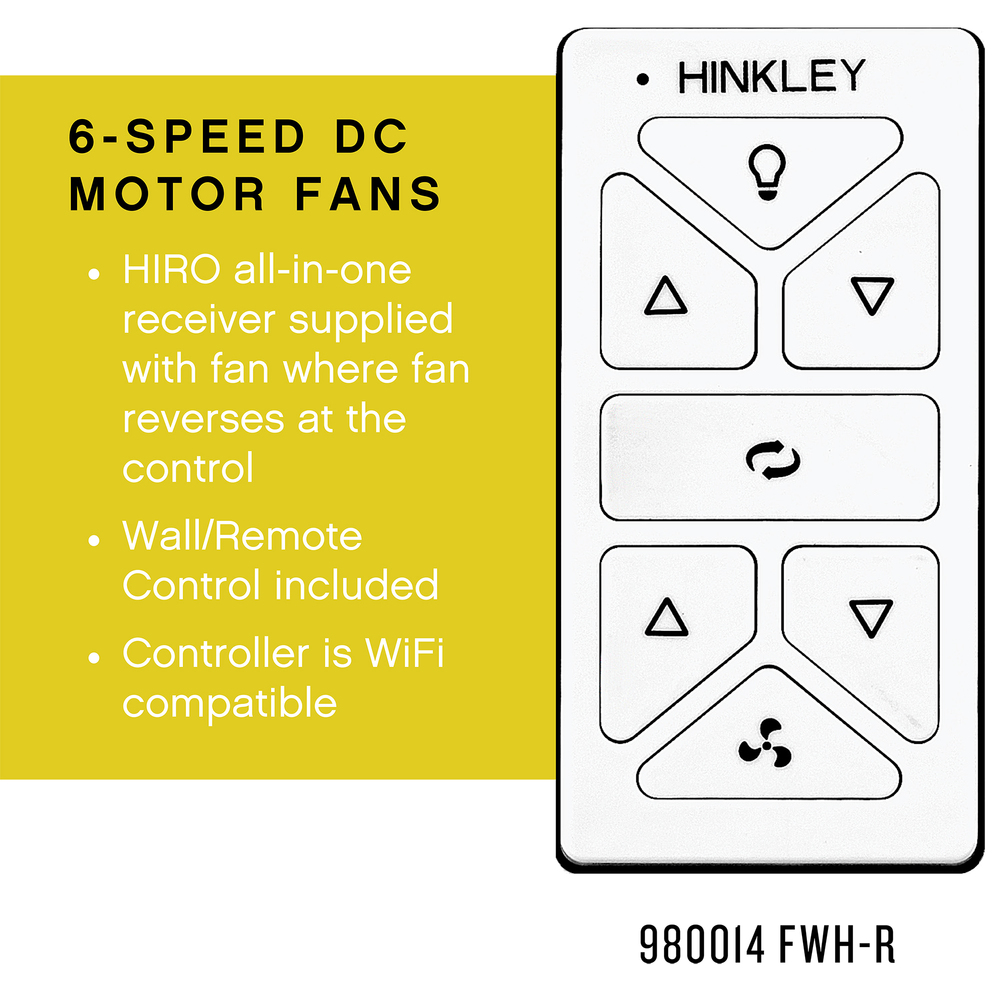

Fan Control included, HIRO Control - 6 Speed Reversing
Fans should be installed at a minimum of 7 feet from the floor
For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
LED components carry a 5-year limited warranty
Motor carries a lifetime warranty
Powered by a highly efficient and quiet DC motor
Suitable for use in wet (outdoor direct rain) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards
This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
