Product Overview

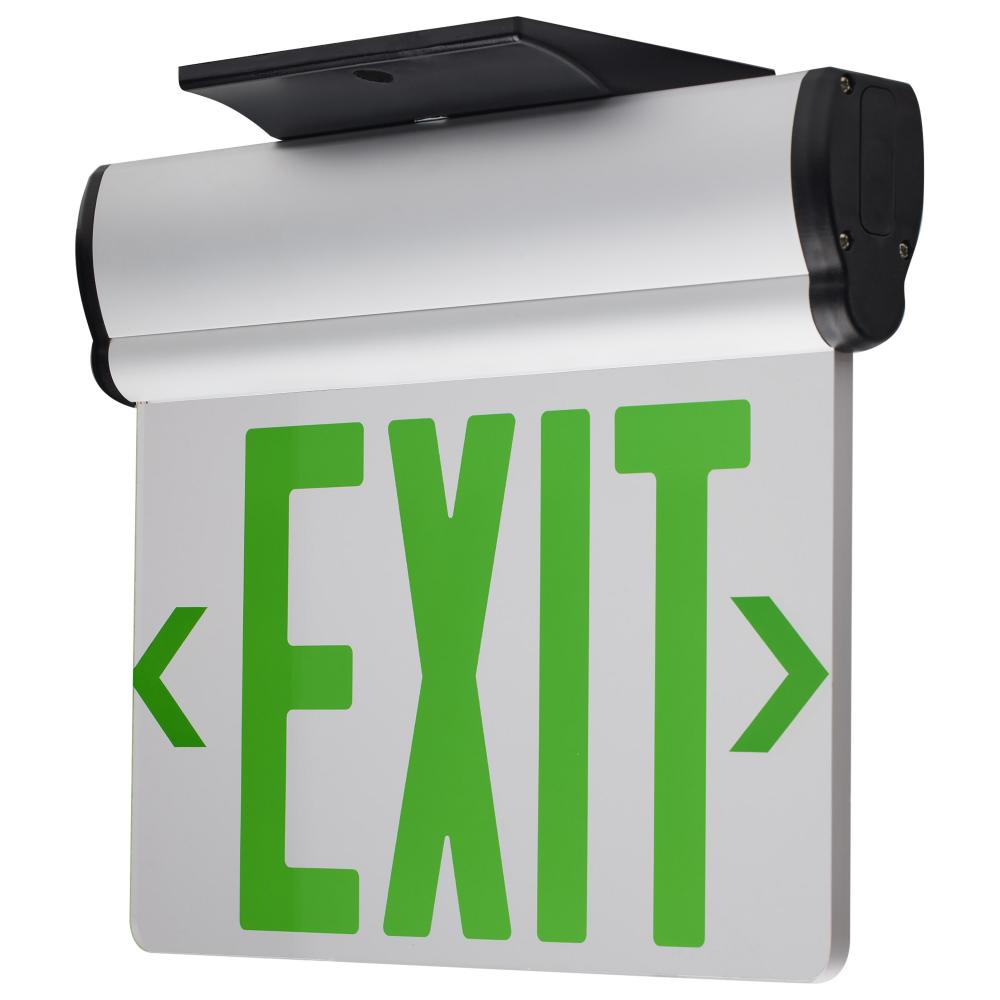

Green (Clear) Edge Lit LED Exit Sign, 90min Ni-Cad backup, 120/277V, Single Face, Top/Back/End Mount

Standard Information

Category:

Utility

Subcategory:

Exit Signs

Finish:

Clear

Option:

LED

Prop 65

Refinement Options

Category:

Lighting Products

Sub Category:

Exit Sign

Style:

Utility

Additional Info:

Input Wattage: 2.94W; Output Wattage: 0.5W; Energy Used in Maintenance Mode: 2.94W

Bulb Shape:

Integrated LED

Bulb Type:

LED

Dimmable:

Non-Dimmable

Harmonized Codes:

9405.61.6000

Ship Carton Height:

2.76

Ship Carton Length:

12.6

Ship Carton Width:

8.460000000000001

Warranty:

2 Year Limited

Amps:

0.025/0.011A

ANSI Base:

Integrated

BAA Compliant:

No

Battery Chemistry:

Ni-Cad

CA Prop-65:

Lead

Carton Cubic Feet:

0.1703

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

T20 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

China

Depth:

1.81

FCC Compliant:

Yes

Feature 1:

Green Lettering

Feature 2:

Single Face, Clear

Feature 3:

Configurable Arrows

Feature 4:

Ceiling, Wall or Side Mounting

Feature 5:

Damp Location

Feature 6:

Sleek Brushed Aluminum Housing

Feature 7:

90 Minute Backup Run Time

Feature 8:

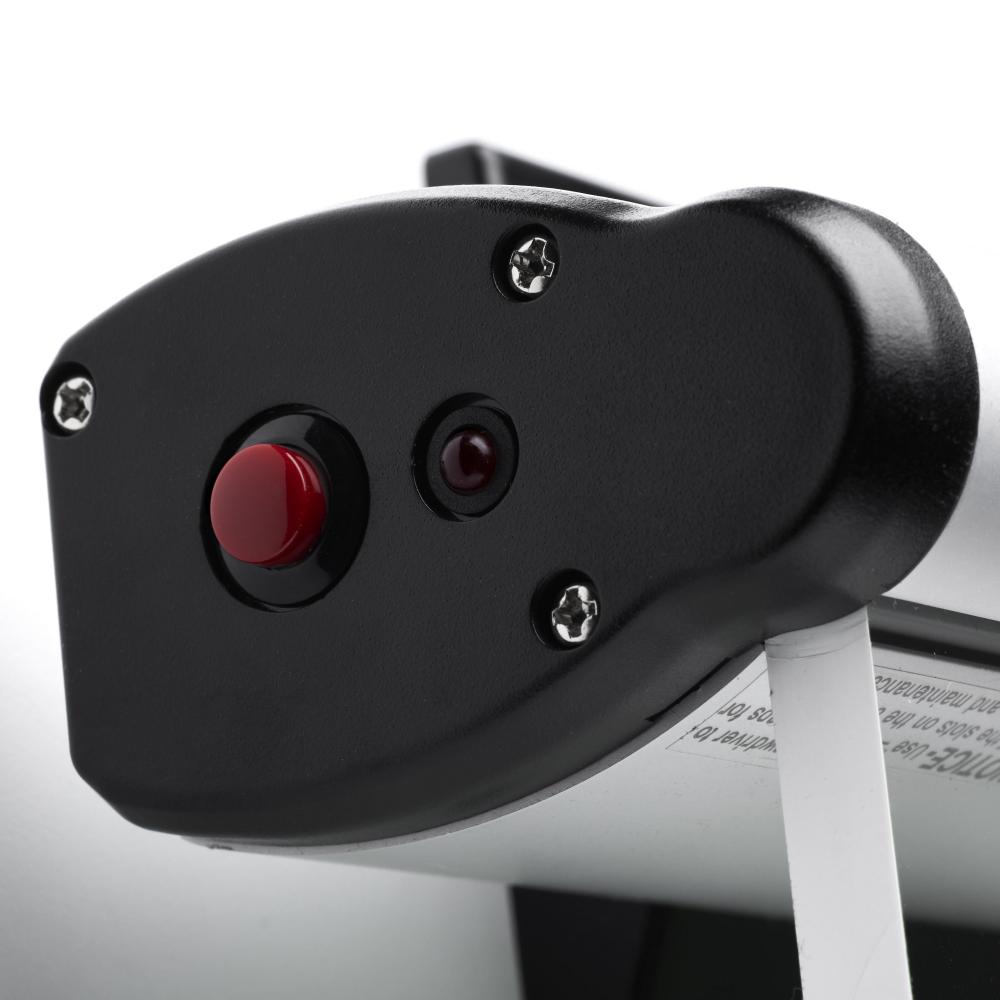

Test Switch and AC Supply Indicator

Feature 9:

2 Year Warranty

Finish Family:

Silver

Has Emergency Battery:

Yes

Includes:

Mounting hardware and accessories

Indoor Outdoor:

Indoor

JA8 Compliant:

No

Long Description:

SATCO|NUVO's LED Surface Mount Edge-Lit Exit Sign 67-112 - the perfect solution for your commercial, hospitality and multi-family spaces. This sign has green lettering in single face clear finish designed with a sleek, brushed aluminum housing and offe

Material:

Aluminum

Mounting Procedure:

Universal

Operating Frequency:

60Hz

Operating Temprature:

+10C (+50F) to +40C (+104F)

Pack Type:

Box

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's LED Surface Mount Edge-Lit Exit Signs - the perfect solution for your commercial, hospitality and multi-family spaces. Available in four different configurations, these signs are designed with a sleek, brushed aluminum housing and offer co

Safety Listing:

ULus - Certified

Short Description:

EL EXIT SIGN - SF GR CLR

Sloped Ceiling Compatible:

No

Specification Notes:

Aluminum, Acrylic Panel, 4.8V AA300mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Letter Height: 6 in.; Letter Stroke: 0.75 in.

Title 20 Compliant:

Yes

Title 24 Compliant:

No

Wattage Selectable:

No

Weight Lb.:

2.76
