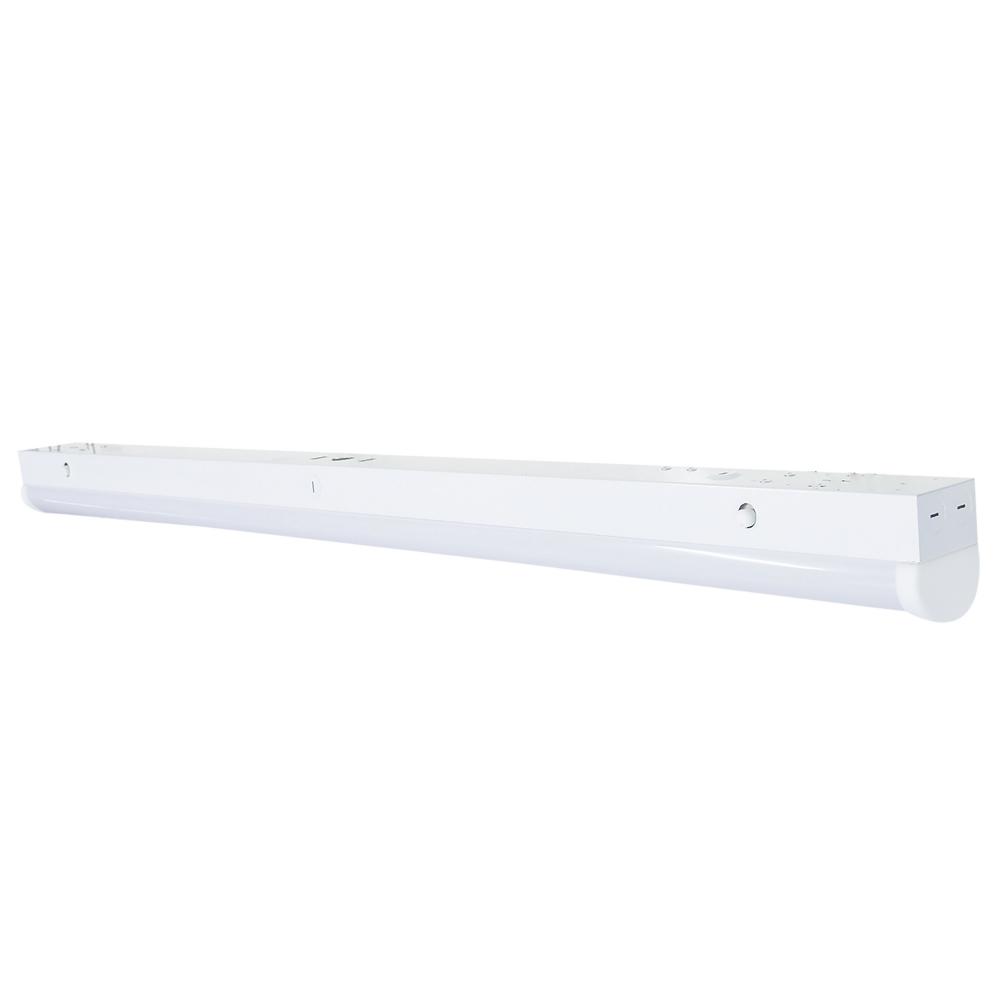

LED 4 ft; Linear Strip Light; 30W/40W/50W; White Finish; CCT Selectable; 100-277V; Integrated EM & : 65/699

Return to Catalog

Part Number: 65/699 / Vendor ID #: 81

LED 4 ft; Linear Strip Light; 30W/40W/50W; White Finish; CCT Selectable; 100-277V; Integrated EM &

$428.00

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 82 items available.

Dimensions

Height: 3.27"

Width: 2.95"

Product Overview

LED 4 ft; Linear Strip Light; 30W/40W/50W; White Finish; CCT Selectable; 100-277V; Integrated EM & Sensor

Standard Information

Category:

Undercabinet

Subcategory:

Strip Lights

Finish:

White

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

5501-6000

Refinement Options

Category:

Linear Strip

Sub Category:

Strip Fixture

Style:

Utility

Additional Info:

EM Mode 4W/90 Min run time. Other DLC Listings: S-UZ1QD6, Standard, Direct Linear Ambient Luminaires.

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Neutral White to Daylight

Dimmable:

Yes-Dimmable

Each Height:

5.31

Each Length:

50.08

Each Width:

5.2

Length:

Lumens:

3900L-6750L

Tariff Code:

9405.11.6010

Warranty:

5 Year Limited - Fixtures

Amps:

0.250-0.108/0.333-0.144/0.417-0.181A

ANSI Base:

Integrated

Beam Angle:

120

B_U_G_Rating:

B2-U4-G2

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Direct Wired

Country Of Origin:

Vietnam

CRI:

Dimmable Down To:

100 to 10 percent

Dimmable Function:

0-10V Dimming

DLC Classification:

Premium; Standard; Standard

DLC Primary Use:

Stairwell and Passageway Luminaires; Direct Linear Ambient Luminaires; Low-Bay Luminaires for Commercial and Industrial Buildings

Each Cube:

0.8002

Each Quantity:

Efficacy:

130.00/133.13/135.00 LPW

FCC Compliant:

Yes

Feature 1:

Flicker Free Driver

Feature 2:

CCT Selectable (3500K/4000K/5000K)

Feature 3:

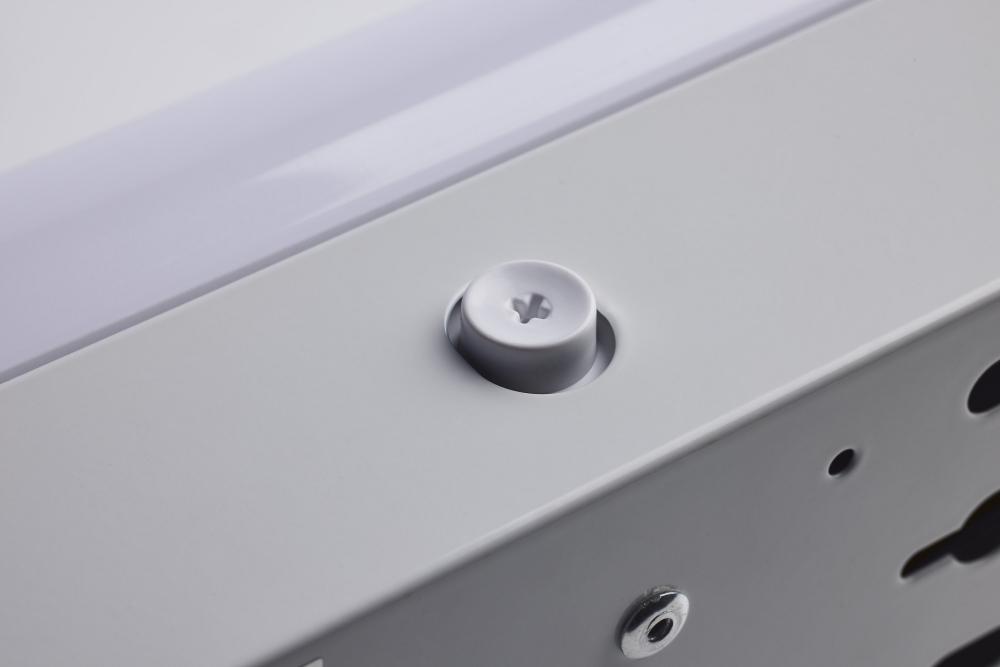

Quick Release Feature for Easy Opening and Installation

Feature 4:

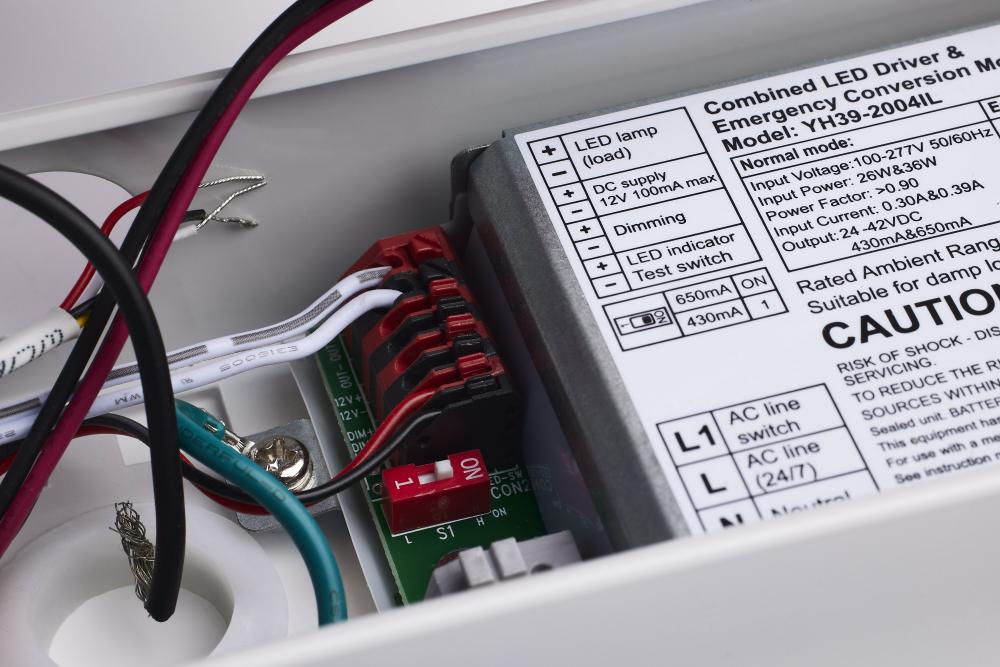

Integrated EM (8W/90 Minute Run Time)

Feature 5:

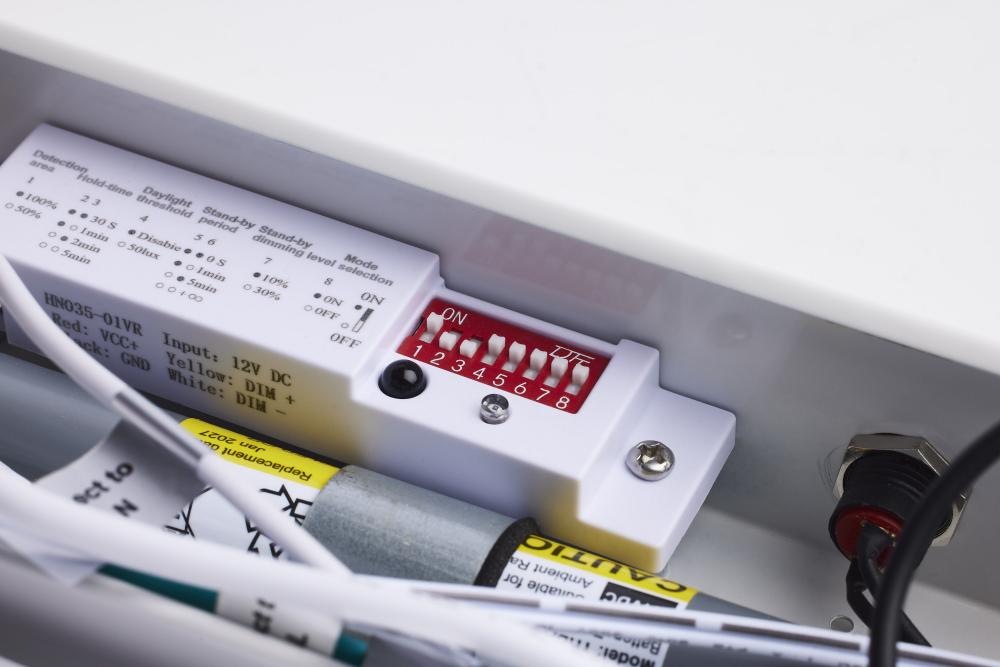

Integrated Microwave Sensor with Bi-level Dimming and On/Off Capabilities

Feature 6:

5 year limited warranty

Feature 7:

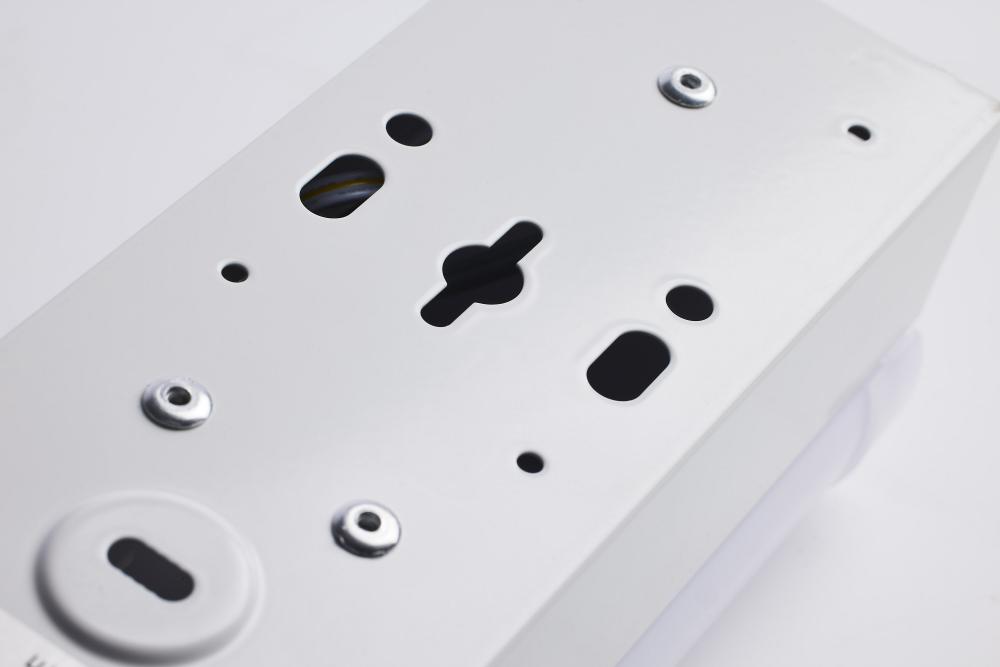

Multiple Mounting Options

Feature 8:

2KV Surge Protection

Finish Family:

White

Fixture shape:

Rectangle

Flicker Free:

Yes

Flr Equiv:

128W

Has Driver:

Yes

Has Emergency Battery:

Yes

HID Equiv:

100W-150W

Incandescent Equivalent:

125W

Indoor Outdoor:

Indoor

IOT Enabled:

IP Rating:

IP20

JA8 Compliant:

Lens Finish:

White

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO's new 65-699 linear strip light, with it's rugged quality construction and ease of installation, just became an even better choice with the addition of CCT and wattage selectable technologies. This 4 foot, version will offer both functio

Material:

Steel

Mounting Diameter:

4.75

Mounting Procedure:

Ceiling

NSF Approved:

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +60C (+140F)

Pack Type:

Box

Photocell:

Has Photocell

Power Factor:

0.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's Strip Lighting, with it's rugged quality construction and ease of installation, just became an even better choice with the addition of CCT and wattage selectable technologies. Available in 2 foot and 4 foot versions, with a quick relea

Safety Listing:

cULus - Listed

SDS class:

LED_Fixture

Short Description:

4' LINEAR STRIP W/ EM & SENSOR

Temperature (CCT):

3500K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

12.10%

Wattage Selectable:

Yes

Weight Lb.:

4.41
